Product Introduction

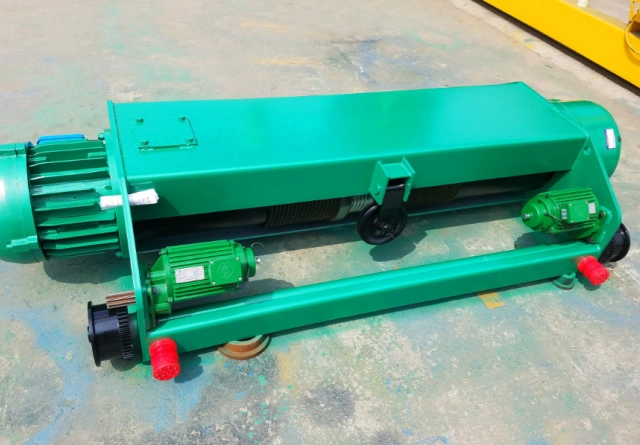

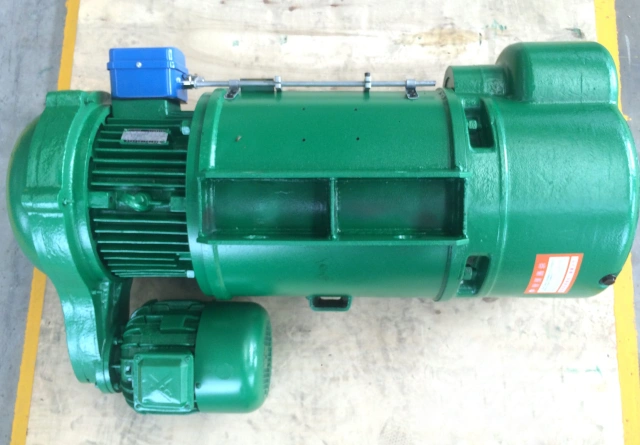

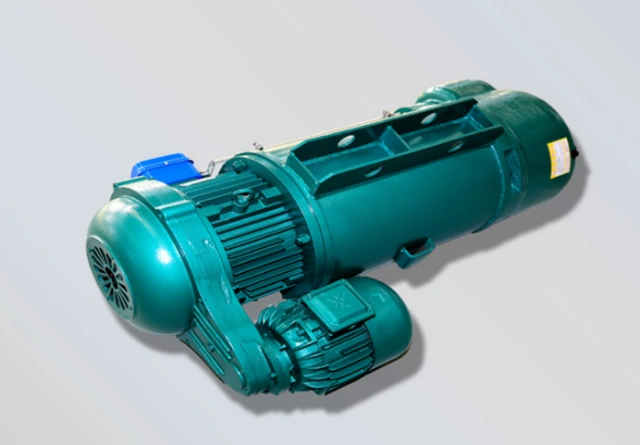

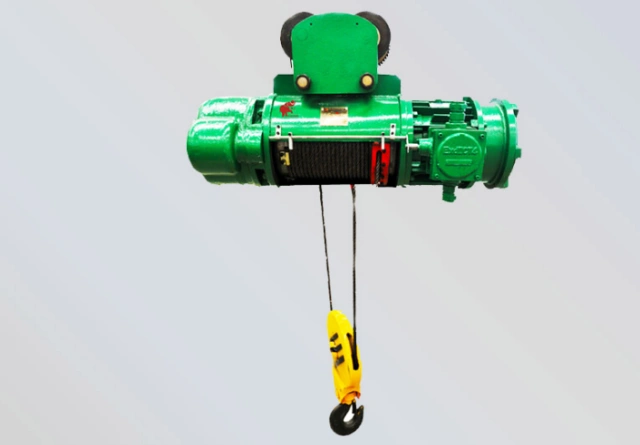

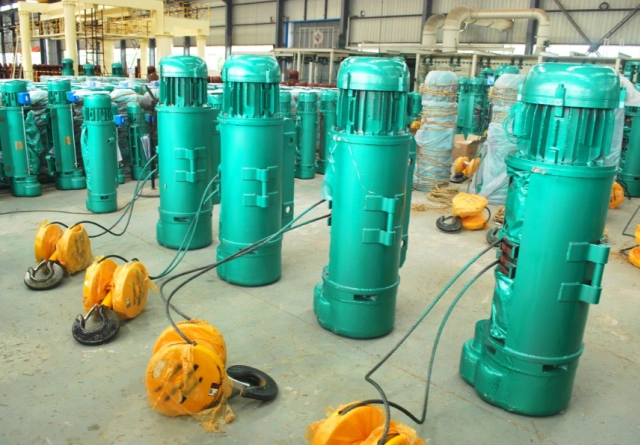

CD/MD Wire Rope Electric Hoist is a widely used lightweight and compact lifting device designed for industrial applications. Mounted on I-beams, overhead cranes, or gantry cranes, it offers an efficient and versatile solution for material handling across workshops, warehouses, and assembly lines.
Technical Specifications
| CD1、MD1 | |||||
| Type | Capacity(t) | Hoisting(m) | Hoisting(m) | Travel speed(m/min) | Track |
| CD1、MD1-0.5t | 0.5 | 6、9、12 | 8(0.8/8) | 20/30 | 16-28b |
| CD1、MD1-1t | 1 | 6、9、12、18、24、30 | 8(0.8/8) | 20/30 | 20a-28b |
| CD1、MD1-2t | 2 | 6、9、12、18、24、30 | 8(0.8/8) | 20/30 | 20a-28b |
| CD1、MD1-3t | 3 | 6、9、12、18、24、30 | 8(0.8/8) | 20/30 | 25a-45a |
| CD1、MD1-5t | 5 | 6、9、12、18、24、30 | 8(0.8/8) | 20/30 | 25a-45a |
| CD1、MD1-10t | 10 | 9、12、18、24、30 | 7(0.7) | 20/30 | 32b-45a |
| CD1、MD1-16t | 16 | 9、12、18、24、30 | 3.5(0.35/3.5) | 18 | 32b-63c |
Product Advantages
CD Model (Single Speed)
Features a single hoisting speed, making it an economical choice for general lifting operations where standard speed is sufficient.
MD Model (Dual Speed)
Equipped with both normal speed and a slow precision speed, allowing for smooth starting, accurate load positioning, and delicate mold or assembly handling.

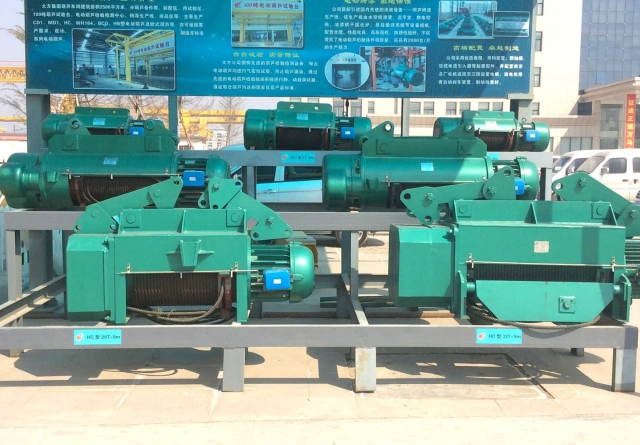

HC Model (Heavy Duty)
Developed specifically to meet demands for higher lifting capacities and heavier duty cycles beyond standard tonnage limits.
Compact & Durable Design
Engineered with a compact structure, small deadweight, high component interchangeability, and easy maintenance and operation.
Typical Application Scenarios
Manufacturing & Assembly Line
Ideal for loading raw materials, moving heavy parts, and staging components at workstations.
Warehouses & Storage Facilities
Extensively used for general cargo loading, unloading, and stacking in industrial storage yards.
Equipment Maintenance
Crucial for precise placement during machinery installation, maintenance, and die/mold changes.
