Product Introduction

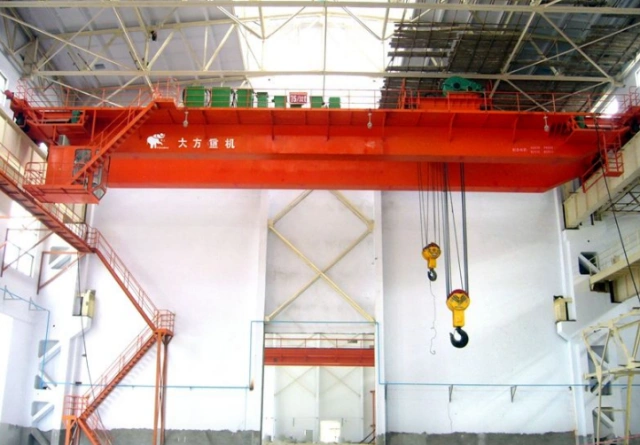

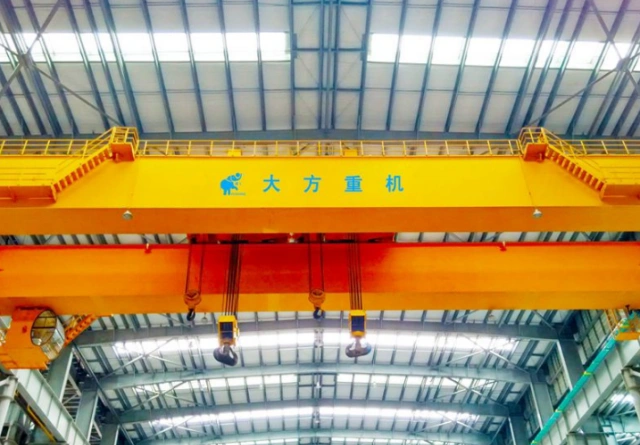

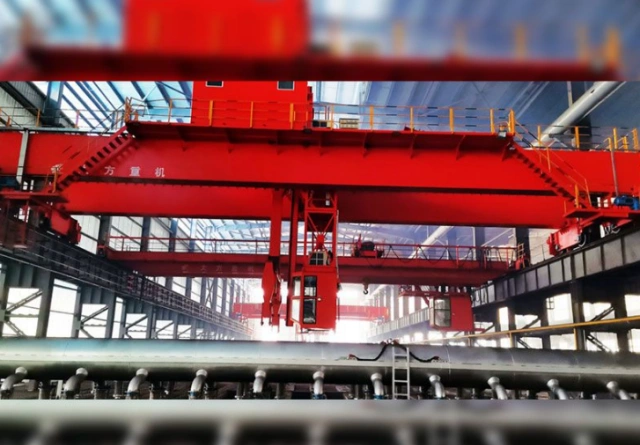

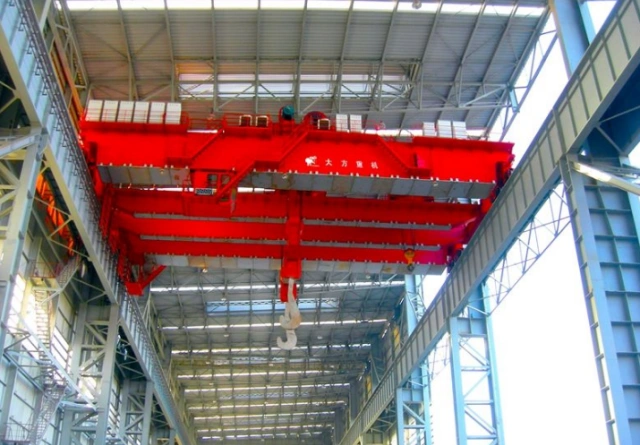

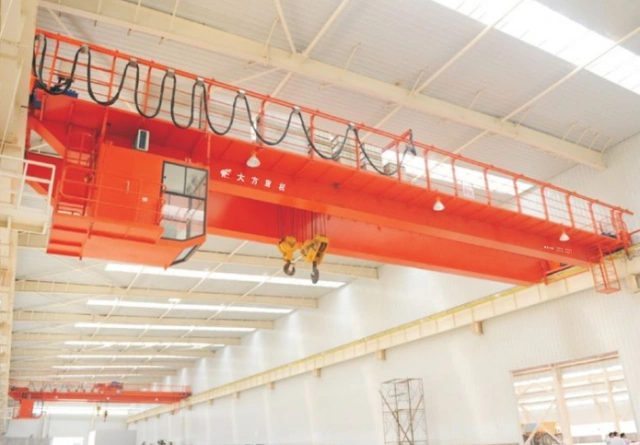

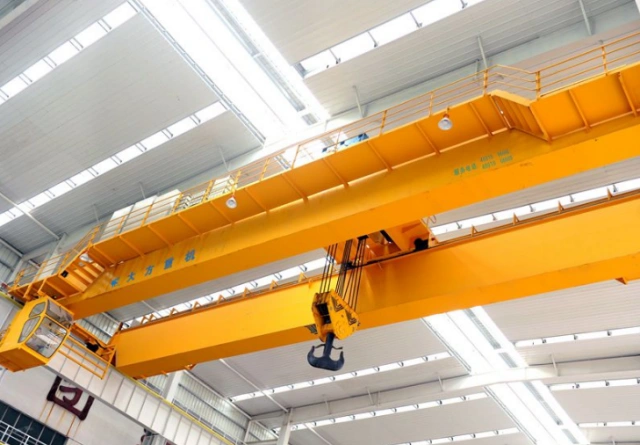

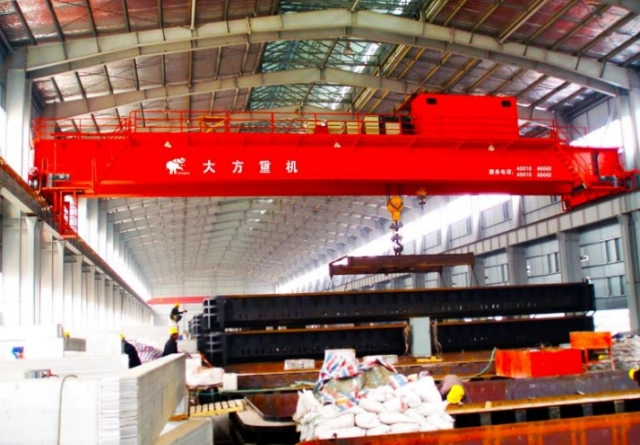

Double-Girder Overhead Crane is a widely used heavy-duty lifting equipment characterized by two parallel main girders. This structure provides high load-bearing capacity and excellent operational stability, allowing it to complete complex lifting tasks through vertical, transverse, and longitudinal three-dimensional movements.
Technical Specifications
| Lifting Capacity (t)Main / Aux. Hook | 5 | 16 / 3.2 | 32 / 5 | 50 / 10 | 100 / 20 | 160 / 32 | 300 / 75 | 350 / 80 | 600 / 150 | 800 / 150 |
| Span Range (m) | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 13~31 | 13~31 | 13~31 | 13~31 | 34 | 34 |
| Lifting Height (m)Main / Aux. Hook | 16 / – | 17 / 19 | 14 / 16 | 12 / 16 | 18 / 20 | 20 / 22 | 24 / 26 | 24 / 26 | 24 / 26 | 26 / 28 |
| Work Duty | A5 / A6 | A5 / A6 | A5 / A6 | A5 / A6 | A5 / A6 | A5 | A5 | A5 | A5 | A5 |
| Main Hoisting Speed (m/min) | 12.5 / 15.5 | 7.9 / 13 | 6 / 7.4 | 5 / 6.1 | 3.1 / 3.9 | 3.2 | 2.4 | 2.2 | 0.17~1.7 | 0.15~1.5 |
| Aux. Hoisting Speed (m/min) | – | 11.2 | 12.5 | 8.5 | 7.2 | 5.9 | 6.8 | 6.8 | 0.14~4.1 | 0.41~4.1 |
| Trolley Travelling Speed (m/min) | 37.2 | 39.7 | 42.6 | 38.5 | 33.9 | 22.5 | 28 | 28 | 1.5~15 | 1.3~13 |
| Crane Travelling Speed (m/min) | 71.8~73.4 /92.4~93.4 | 70.6~75 /86.4~93.7 | 74.2~87.6 /75.4~89 | 65.7~75.3 /75~76.6 | 61.7 / 61.8 | 57 | 42 | 42 | 3.6~36 | 3.1~31 |
| Max. Wheel Loading Range (kN) | 66~109 | 132~205 | 224~313 | 321~429 | 321~400 | 272~338 | 480~565 | 507~613 | 980 | 840 |
| Total Power Range (kW) | 22.8~31.8 | 48.9~62.3 | 71.3~86.3 | 93.5~110.5 | 136~174 | 232~260 | 485~537 | 485~537 | 466 | 588 |
| Recommended Rail | 43kg/m | 43kg/m | QU70 | QU80 | QU100 | QU120 | QU120 | QU120 | QU120 | QU120 |
| Power Supply | 3-Phase A.C. 380V 50Hz | |||||||||
Main Applications

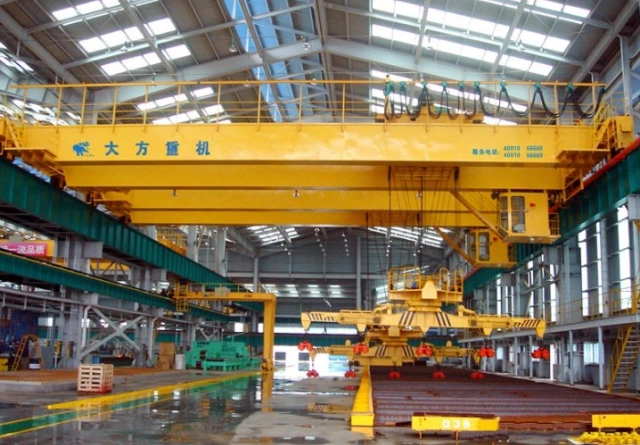

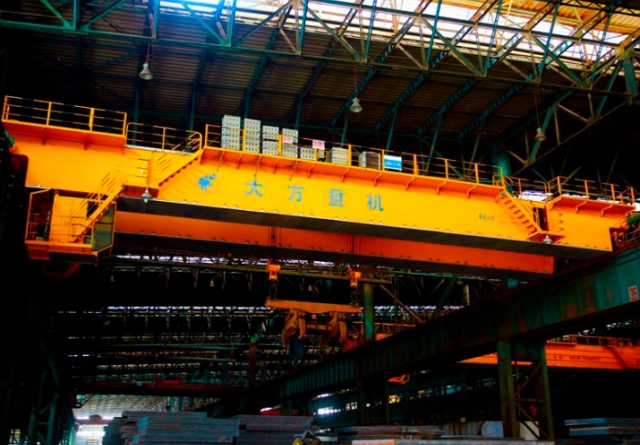

Steel Industry

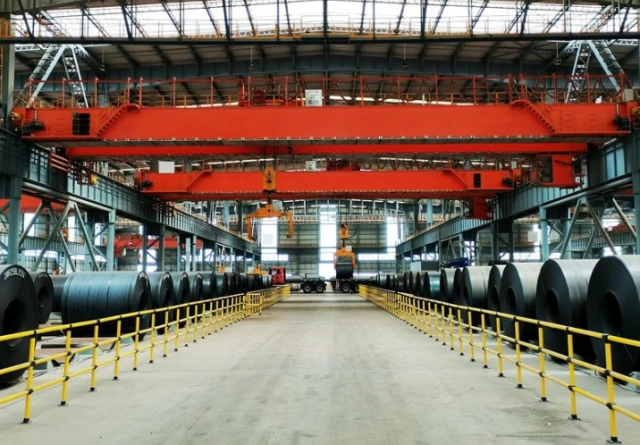

Lifting steel coils, section steel, steel plates, and billets, as well as handling heavy equipment maintenance.
Manufacturing & Assembly
Handling large components such as car bodies and machinery parts; commonly used in assembly lines.
Other Fields
Power plants, heavy machinery maintenance, foundries, and more.
Product Features
Manufactured with high-quality components to withstand the stresses of lifting and moving heavy loads.
Highly versatile design to meet specialized lifting requirements.
Sturdy and robust structure suitable for various demanding industrial environments.
