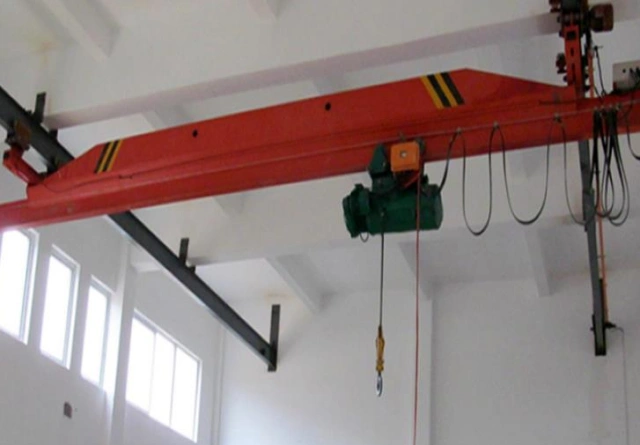

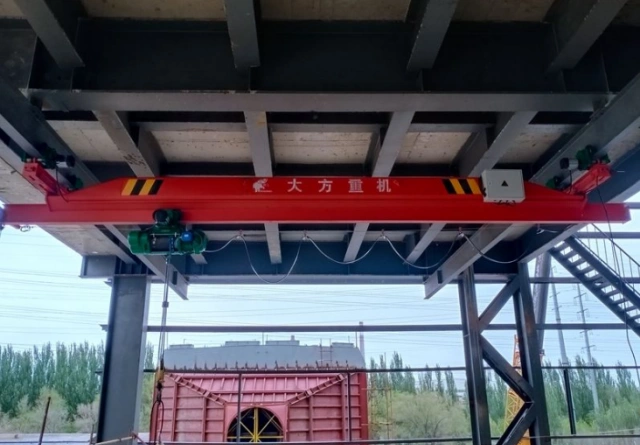

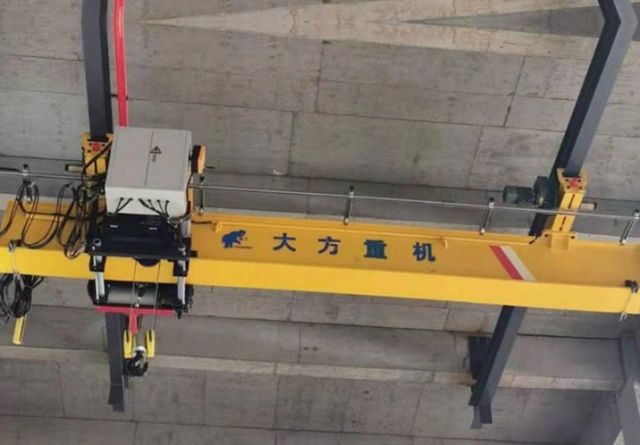

Product Introduction
Flexible Light-Duty Modular Suspension Crane (also categorized as light and small-scale lifting equipment) is available in both single-girder and double-girder configurations. It offers a lifting capacity of up to 2,000 kg, easy installation, and high operational safety.
Technical Specifications
| Capacity(t) | 0.5,1,2,3,5,10 | ||||||
| Span(m) | 3~22.5 | ||||||
| Crane travelling mechanism | Travelling speed | 20m/min | |||||
| Motor | 0.5~3t, | 3-22.5m | ZDY12-4/0.4kW×2n=1380r/min | ||||
| 5t | 3-16m | ||||||
| 5t | 6-22.5m | ZDY21-4/0.8kW×2n=1380r/min | |||||
| 10t | 3-22.5m | ||||||
| Lifting mechanism | Electric hoist | Model | CD₁/MD₁ | ||||
| Lifting speed | 0.5/5t | 8,0.8/8 | |||||
| 10t | 7,0.7/7 | ||||||
| Lifting height(m) | 6;9;12;18;24;30 | ||||||
| Travelling mechanism | Travelling speed | 20m/min | |||||
| Motor | Taper type Rotor motor | ||||||
| Work system | A3 | ||||||
| Power | three-phase AC380V 50Hz | ||||||
| Capacity & Span | Wheel diameter | Width of track | |||||
| 0.5~3t,3~22.5m;5t,3~16m | φ 134 | I20a~I32c | |||||
| 5t,16~22.5m;10t,3~16m | φ 154 | I32b~I45c | |||||
| 10t,16~22.5m | φ 154 | I40b~I63c | |||||
Product Advantages
High Capacity & Flexibility
Lifting capacity up to 2,000 kg with multiple track profiles and span options.
Modular Design
Prefabricated standardized modular components make expansion and relocation effortless.
Low Floor Requirement
Can be installed directly on any standard 15 cm thick reinforced concrete floor.
Enclosed Track Profile
Protects internal trolleys from dirt, dust, and environmental contamination.
Rigid Fixed Rails
Ensures precise load positioning and smooth motion control.
High Precision & Low Friction
High-strength, single-pass cold-rolled steel rails offer lightweight performance, high precision, and smooth rolling surfaces to minimize trolley resistance.
Wide Applicability
Suitable for a wide range of material handling environments.
Cost-Effective
Highly economical solution for individual workstation applications.
Easy Installation
Lightweight setup reduces installation time and labor costs.
Improved Ergonomics
Boosts operator satisfaction and reduces manual exertion.
Safe Operation
Provides a reliable, secure, and compliant working environment.
Fast ROI
Delivers rapid return on investment by significantly boosting production efficiency.
