Product Introduction

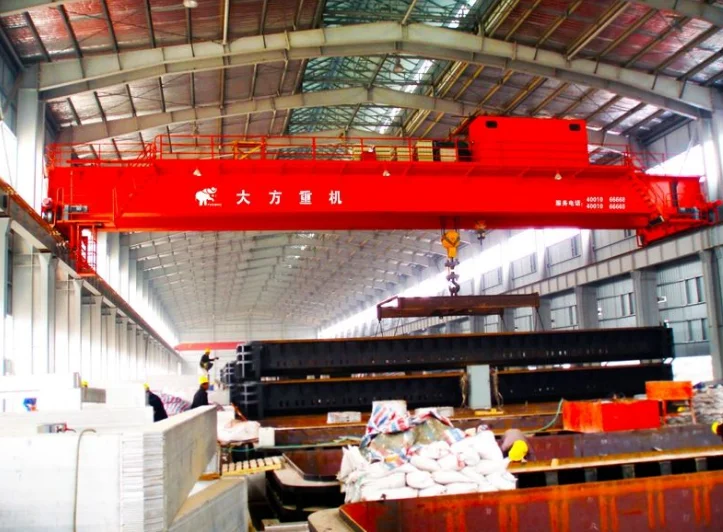

Insulating Overhead Crane (typically designated as QY Type) is a specialized material handling solution designed for environments with high voltages and strong electrical currents. Engineered with multi-layered electrical isolation structures, it prevents hazardous currents from traveling through the crane to the operator or building structure, ensuring maximum operational safety.
Technical Specifications
| Lifting Capacity (t)Main / Aux. Hook | 5 | 16 / 3.2 | 32 / 5 | 50 / 10 | 100 / 20 | 160 / 32 | 300 / 75 | 350 / 80 | 600 / 150 | 800 / 150 |
| Span Range (m) | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 13~31 | 13~31 | 13~31 | 13~31 | 34 | 34 |
| Lifting Height (m)Main / Aux. Hook | 16 / – | 17 / 19 | 14 / 16 | 12 / 16 | 18 / 20 | 20 / 22 | 24 / 26 | 24 / 26 | 24 / 26 | 26 / 28 |
| Work Duty | A5 / A6 | A5 / A6 | A5 / A6 | A5 / A6 | A5 / A6 | A5 | A5 | A5 | A5 | A5 |
| Main Hoisting Speed (m/min) | 12.5 / 15.5 | 7.9 / 13 | 6 / 7.4 | 5 / 6.1 | 3.1 / 3.9 | 3.2 | 2.4 | 2.2 | 0.17~1.7 | 0.15~1.5 |
| Aux. Hoisting Speed (m/min) | – | 11.2 | 12.5 | 8.5 | 7.2 | 5.9 | 6.8 | 6.8 | 0.14~4.1 | 0.41~4.1 |
| Trolley Travelling Speed (m/min) | 37.2 | 39.7 | 42.6 | 38.5 | 33.9 | 22.5 | 28 | 28 | 1.5~15 | 1.3~13 |
| Crane Travelling Speed (m/min) | 71.8~73.4 /92.4~93.4 | 70.6~75 /86.4~93.7 | 74.2~87.6 /75.4~89 | 65.7~75.3 /75~76.6 | 61.7 / 61.8 | 57 | 42 | 42 | 3.6~36 | 3.1~31 |
| Max. Wheel Loading Range (kN) | 66~109 | 132~205 | 224~313 | 321~429 | 321~400 | 272~338 | 480~565 | 507~613 | 980 | 840 |
| Total Power Range (kW) | 22.8~31.8 | 48.9~62.3 | 71.3~86.3 | 93.5~110.5 | 136~174 | 232~260 | 485~537 | 485~537 | 466 | 588 |
| Recommended Rail | 43kg/m | 43kg/m | QU70 | QU80 | QU100 | QU120 | QU120 | QU120 | QU120 | QU120 |
| Power Supply | 3-Phase A.C. 380V 50Hz | |||||||||
Product Advantages
Multi-Layer Insulation Protection
Incorporates high-performance insulating materials across hook assemblies, trolley frames, and main girders to safely withstand strong electric fields and high voltages.
Enhanced Structural Integrity
Constructed with high-strength, rigid steel to maintain long-term stability and equipment lifespan under demanding industrial conditions.
Intelligent & Safe Control
Equipped with automated control systems and smart monitoring devices for precise positioning and real-time safety tracking.
Stray Current Prevention
Eliminates the risk of current conduction during electric welding operations on suspended metal components, preventing severe electrical accidents.
Typical Application Scenarios
Non-Ferrous Metal Smelting
Essential for safe material handling in electrolytic copper, lead, zinc, and electroplating workshops.
Aluminum & Magnesium Smelting
Built to withstand the extreme magnetic and electrical environments of aluminum and magnesium electrolysis plants.
High-Voltage & Strong-Current Workshops
Crucial for industrial facilities operating under active, high-intensity electric fields.
Heavy Metal Welding & Fabrication
Safely hoists metal structures during active welding operations to prevent electrical feedback loops.
