Product Introduction

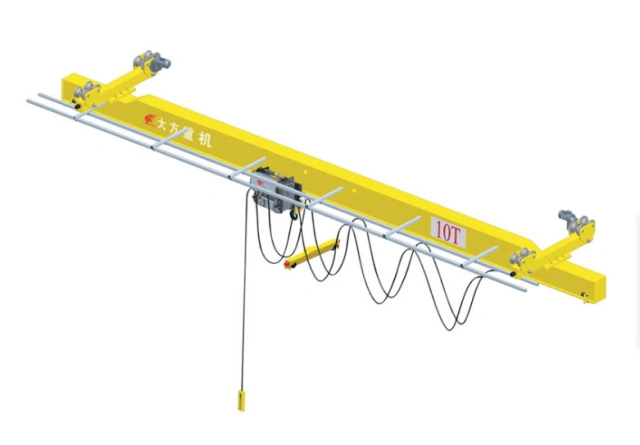

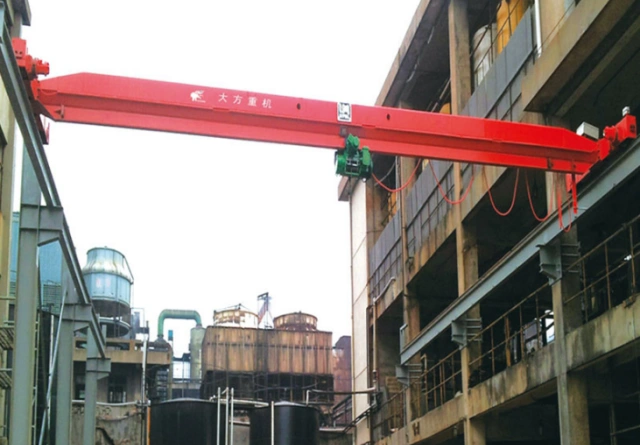

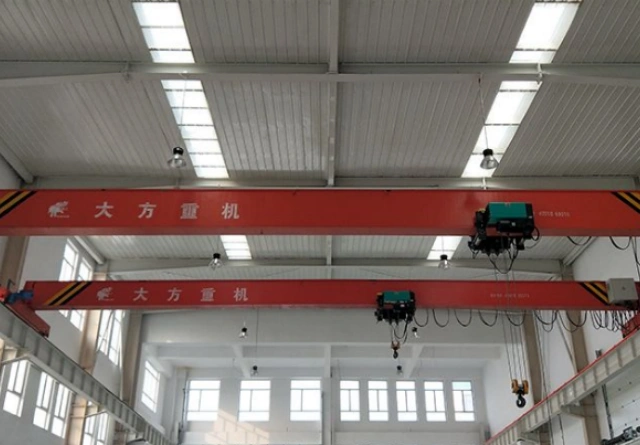

Single-Girder Overhead Crane (Single-Girder Bridge Crane) is an overhead lifting equipment spanned across workshops, warehouses, and material yards for material handling. Named for its bridge-like shape, its two ends rest on tall concrete columns or metal supports. The bridge frame runs longitudinally along tracks laid on elevated structures on both sides, making full use of the space under the bridge to lift materials without being obstructed by ground equipment. It is the most widely used and numerous type of lifting machinery.
Technical Specifications
| Capacity (t) | Span (m) | Working Class | Lifting Speed (m/min) | Trolley Speed (m/min) | Crane Travel Speed (m/min) | Total Dead Weight (t) |
| 1 | 7.5 | A3 | 8(0.8/8) | 20/30 | 20/30 | 1.65 |
| 10 | 1.88 | |||||
| 22.5 | 3.41 | |||||
| 2 | 7.5 | A3 | 1.78 | |||
| 12.5 | 2.35 | |||||
| 22.5 | 4.67 | |||||
| 3 | 7.5 | A3 | 1.88 | |||
| 12.5 | 2.47 | |||||
| 22.5 | 4.83 | |||||
| 5 | 7.5 | A3 | 2.14 | |||
| 12.5 | 3.12 | |||||
| 22.5 | 6.65 | |||||
| 10 | 7.5 | A3 | 7(0.7/7) | 2.87 | ||
| 12.5 | 3.87 | |||||
| 22.5 | 7 | |||||
| 16 | 7.5 | A3 | 3.5(0.35/3.5) | 18 | 3.66 | |
| 12.5 | 5.13 | |||||
| 22.5 | 8.89 |
Product Advantages
Space-Saving
Low-headroom design with the electric hoist positioned on one side of the main girder increases hook operating space and lowers workshop height requirements.
Easy Operation
Supports ground control, remote control, and cabin operation, delivering precise load control and smooth start/stop functions.
Safe & Reliable
Equipped with overload protection and an emergency braking system, featuring low operating noise.
Cost-Effective Maintenance
High component interchangeability, energy-efficient performance, and low maintenance costs.
